vMix Console Control Switcher Keyboard T-bar Joystick Surface for Live Broadcast Production New Media YouTube Ins

Regular price $699.00

vMix Console Control Switcher Keyboard     T-bar Joystick  Surface   for Live Broadcast Production New Media YouTube Ins

Type: Hand tool parts

Place of Origin: Guangdong, China

Multifunctional keyboard controller, products used in audio/video live broadcast system, audio and video recording system;

Hardware Configuration/Characteristic

  • Model: WY-JK105VB

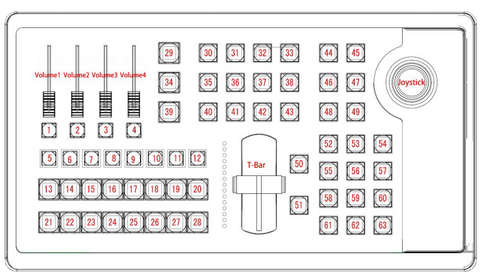

  • Number of keys: 63PCS
  • Joystick: 3axis Hall joystick
  • T-bar: Hall sensor T-bar, liquid level LED indication
  • Volume control: 4 channels

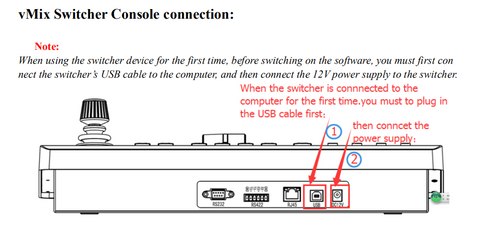

  • Communication interface: USB, RS232, RS422
  • Power supply: DC12V / 1000Ma
  • Volume: 4 channels
  • T-shaped strip: 1 T-shaped strip

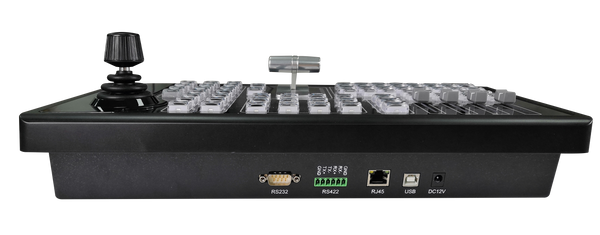

  • Interface: USBX1, RS232X1, RS422X1
  • Net weight: 3.0KG
  • Gross weight: 4.35KG

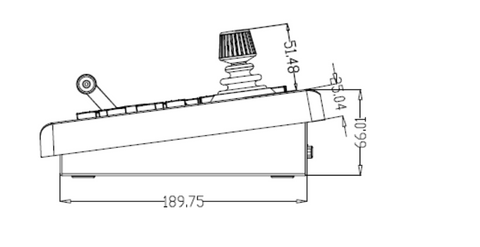

  • Product size: 400X220X114mm
  • Packing size: 47x28x20cm


 This product can only be used in the specified conditions in order to avoid any damage to the camera:

  • Don’t subject the camera to rain or moisture.
  • Don’t remove the cover. Removal of the cover may result in an electric shock. In addition to voiding the

warranty.In case of abnormal operation, contact the manufacturer.

  • Never operate outside of the specified operating temperature range, humidity, or with any other power supply than the one originally provided with the camera.
  • Please use a soft dry cloth to clean the camera. If the camera is very dirty, clean it with diluted neutral detergent; do not use any type of solvents, which may damage the surface.
  • This is a Digital device. As such, unintentional electromagnetic radiation may affect the image quality of TV in a home environment.
  • Avoid any stress, vibration, or moisture during transportation, storage, installation and operation.
  • Do not lift or move the camera by grasping the camera head. Do not turn the camera head by hand. Doing so may result in mechanical damage.
  • Do not expose camera to any corrosive solid, liquid, or gas to avoid damage to the cover which is made of a plastic material.
  • Ensure that there are no obstacles in the tilt or pan ranges of the camera lens.
  • Never power camera on before installation is complete.
  • Do not dismantle the products- The manufacturer is not responsible for any unauthorized modification or dismantling.
